WT5935C-350 Carbon Fiber Nanotube Thermal Pads
WT5935C-350 Carbon Fiber Nanotube Thermal Pad uses the carbon fiber oriented tableting technology developed by WT. It is superior to traditional thermal pads in thermal conductivity and product elasticity. The product is made of silicone rubber filled with carbon-based materials.
▶ Typical Application
● High- Reliability electronic cooling and heating components, such as electronic devices, semiconductor memory devices, etc.
● General-purpose inverter, Medical equipments, DSC
● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED)
● Laser HUD light source
● Consumer microelectronics and hand held electronic device (like mobile phone, computer, etc)
● Base station, IGBT module
▶ Parameter Index
Index | Test Standard | Data |
Color | / | Grey |
Thickness (mm) | ASTM D374 | 0.5~5.0 |
Thermal conductivity (W/(m˙K)) | ASTM D5470 | 35 |
Hardness (Shore OO) | ASTM D2240 | 50/65 |
Density (g/cc) | ASTM D792 | 2.45 |
Breakdown voltage (kV/mm) | ASTM D149 | ＜0.1 |
Temperature range (℃) | -50~150 | |
Flame retardant rating | UL94 | V-0 |
Customized option | Double-sides no adhesive/ single-side additional adhesive/ double-sides adhesive | |
▶ Function and Characteristics
● High thermal interface performance: 31.5~38.5W/(m·K)
● High flexibility: can be perfectly embed in uneven interface
● High applicability: stable performance under -50~150℃
● Excellent flame performance: meet UL94-V0 level
● Meet ROHS, REACH standard

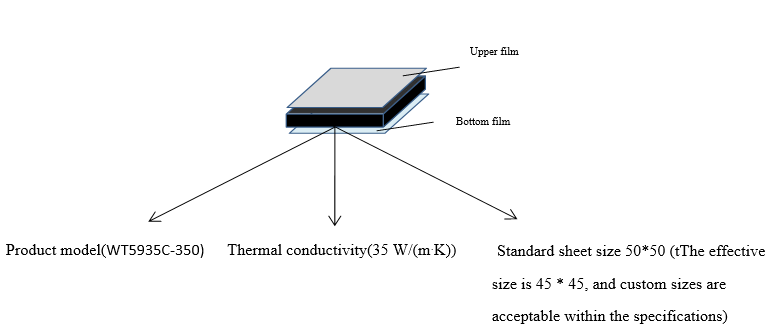

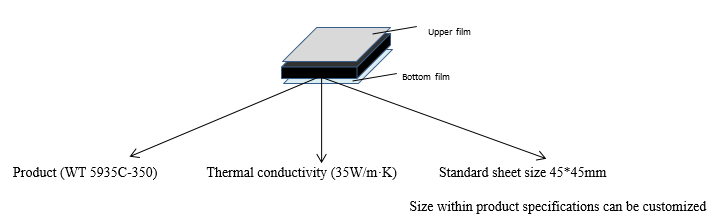

▶ Dimension
▶ Remarks
For the data sheet, Waermtimo reserves the right to final modification.
