WT 5902-150 Thermal pad
WT 5902-150 Thermal Pad can solve the problem of tolerance changes in product structural design, and are reusable. They are a good vertical heat conduction material between the heat source (CPU or electronic chip group) and the heat sink. Easy to operate, use, and rework.
▶ Typical Application
● High- Reliability electronic cooling and heating components, such as electronic devices, semiconductor memory devices, etc.
● General-purpose inverter, Medical equipments, DSC
● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED)
● Laser HUD light source
● Consumer microelectronics and hand held electronic device (like mobile phone, computer, etc)
● Base station, IGBT module
▶ Parameter Index
Index | Test Standard | Data |
Color | / | Grey |
Thickness (mm) | ASTM D374 | 1.0~4.0 |
Thermal conductivity（W/(m·K)） | ASTM D5470 | 15.0 |
Hardness (Shore OO) | ASTM D2240 | 50 |
Volume resistivity （Ω·cm） | ASTM D257 | 1.0×1012 |
Density (g/cm³) | ASTM D792 | 3.21 |
Breakdown voltage (kV/mm) | ASTM D149 | ≧7 |
Temperature range (℃) | -50~150 | |
Flame retardant rating | UL94 | V-0 |
Customized options | Single sided treatment/single sided additional adhesive/fiberglass reinforcement | |
▶ Performance comparison test data under different pressures (Psi) (1.0T )
（1）Thermal resistance change test data
Product measured thickness | 1.0T | ||||||||
Test conditions | 5Psi | 10Psi | 15Psi | 20Psi | 25Psi | 30Psi | 35Psi | 40Psi | 45Psi |
Thermal resistance℃/W | 0.150 | 0.143 | 0.137 | 0.130 | 0.125 | 0.122 | 0.120 | 0.118 | 0.116 |

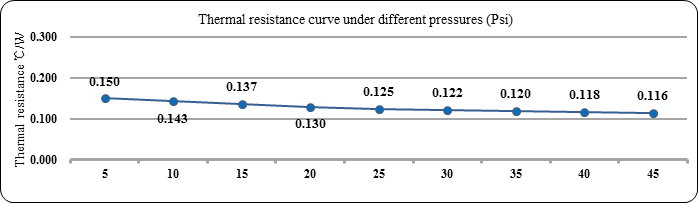

（2）Thermal resistance variation curve
（3）Compression rate change test data
Product measured thickness | 1.0T | ||||||||
Test conditions | 5Psi | 10Psi | 15Psi | 20Psi | 25Psi | 30Psi | 35Psi | 40Psi | 45Psi |
Compression rate % | 11.78% | 13.55% | 15.36% | 17.01% | 18.84% | 20.80% | 22.68% | 24.39% | 24.87% |

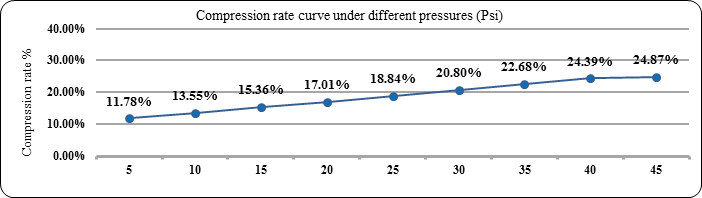

（4）Compression rate variation curve
▶ Function and Characteristics
● High thermal interface performance: 15W/(m·K)
● High flexibility: can be perfectly embed in uneven interface
● High applicability: stable performance under -50~150℃
● Excellent flame performance: meet UL94-V0 level
● Meet ROHS, REACH standard

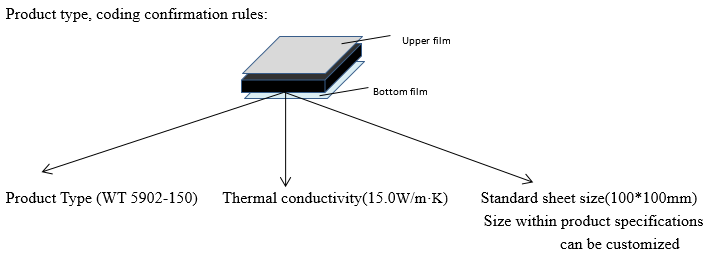

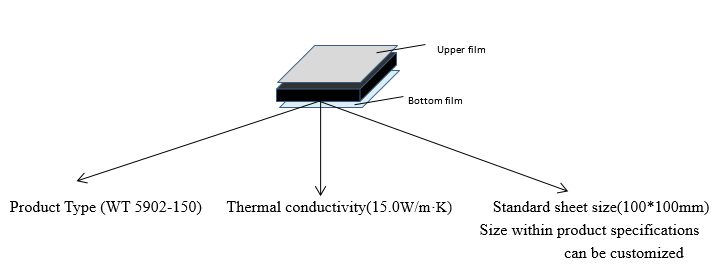

▶ Dimension
▶ Remarks
For the data sheet, Waermtimo reserves the right to final modification.
