WT 5932-280 Liquid metal thermal grease
WT 5932-280 Liquid metal thermal grease is a liquid metal modified composite thermal conductive material, its thermal conductivity can reach 28w/(m·k), suitable for military, laser, IGBT, LED and other fields. It has high thermal conductivity and low thermal resistance, which solves the problem of low thermal conductivity of traditional silicone grease and poor application.
▶ Function and characteristics
● Low thermal resistance, high thermal conductivity
● Smooth application
● Suitable for manual and automatic printing on metal interface
▶ Typical application
● CPU/GPU communications, network equipment and microelectronics
● Notebooks, desktops, industrial computers and servers
● High- Reliability electronic, Laser, IGBT, LED
▶ Parameter Index
Item | Condition | Test standard | WT 5932-280 |
Color | / | / | Bright silver |
Form | / | / | Paste |
Odor | / | / | No |
Thermal conductivity (W/(m·K)) | 80℃ | ASTM D5470 | 28 |
Cone penetration（0.1mm） | 25℃ | GB/T 269 | 200 |
Density(g/cm³) | 25℃ | ASTM D1475 | 4.8 |
Volatile rate (%) | 125℃/24Hours | / | ＜0.001% |
Volume resistivity (Ω·m) | 100V DC | / | 1.4×10-7 |
Corrosive（） | Cu, Fe, Al | / | Aluminum corrosion |
Work temperature (℃) | - | - | -40~200 |
▶ Packaging and storage

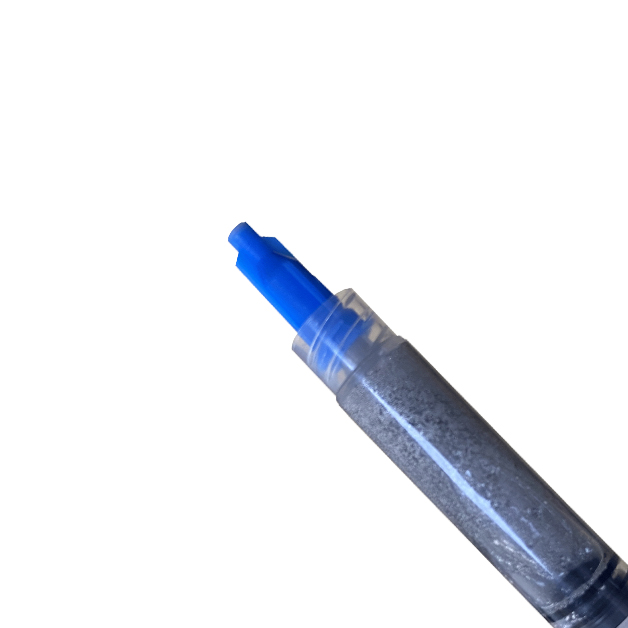

● Usually, it is packaged in 2mL syringe, but it is not ruled out that other specifications of
packaging will be provided
● Under normal temperature, in a cool and dry place, the shelf life is 12 months.
