WT 5932-30P Thermal Grease
WT 5932-30P is a specially formulated thermal grease with high thermal conductivity and low construction resistance between the metal heat sink and the heater.
▶ Function and characteristics
● No solvent, no fluidity
● Low thermal resistance, high thermal conductivity

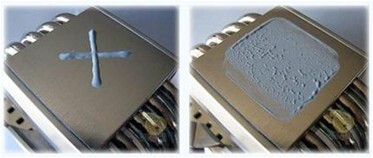

● Smooth smearing
● Suitable for manual and fully automatic printing of metal interfaces
▶ Typical application
● CPU/GPU communications, network equipment and microelectronics
● Notebooks, desktops, industrial computers and servers
▶ Parameter Index
Item | Temperature | Test standard | WT 5932-30P |
Appearance | 25℃ | Visual | Grey |
Thermal conductivity (W/(m˙K)) | No | ASTM D5470 | 2.5 |
Density (g/cc) | 25℃ | ASTM D1475 | 3.05 |
Volatilization rate (%) | 200℃/24Hours | Fed.Std.791 | ＜1.0 |
Thermal resistance (℃/w, 0.1mm) | 80℃ | ASTM D5470 | 0.03 |
Volume resistivity（Ω·cm） | No | ASTM D-257 | >108 |
Cone penetration (0.1mm) | 25℃ | GB/T269 | 260 |
Temperature range (℃) | No | No | -40~150 |
Flammability rating | No | UL94 | V-0 |
▶ Features and advantages
● Long life: no change in thermal conductivity after 150°C/1000 hours
● Low oil yield: oil deviation less than 1% after 200 ° C / 8 hours
● Low volatility: less than 1% volatility after 200 ° C / 24 hours
▶ Packaging and storage
● Usually, it is packaged in 2mL syringe, but it is not ruled out that other specifications of
packaging will be provided
● Under normal temperature, in a cool and dry place, the shelf life is 12 months.
▶ Reference data

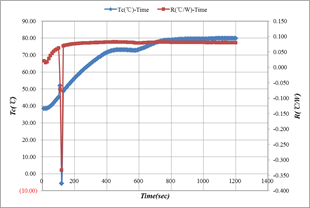

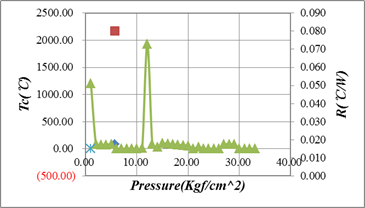

▶ Thermal test
● Test Standard：ASTM5470
● Test Equipment：LW9389
