WT 5901-1623G Thermal silicone cloth

WT 5901-1623G is a thermal cloth product produced through a special process with a silicone resin composite material with glass fiber as the base material. Because of its excellent insulation and strong assembly operability, it is widely used between heat-generating semiconductor devices and heat-dissipating substrates. The product can be die-cut into the required shape according to the specific requirements of the customer, and a certain force is applied to fix it between the heat source device and the heat sink during assembly, which can play the role of heat conduction and insulation.

▶ Typical Application

● High- Reliability electronic cooling and heating components, such as electronic devices, semiconductor memory devices, etc.

● General-purpose inverter, Medical equipments, DSC

● Automotive electronics, such as on-board cameras, motor control units, automotive navigation, automotive lighting (LED)

● Laser HUD light source

● Consumer microelectronics and hand held electronic device (like mobile phone, computer, etc)

● Base station, IGBT module

▶ Parameter Index

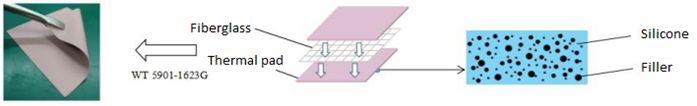

▶ Product Structure

▶Function and Characteristic

● Excellent insulation performance: 5.5kV

● High tensile strength: 9 Mpa

● High applicability: stable performance under -60~180℃

● Excellent flame retardant performance: meet UL94-V0 level

● Meet RoHS, REACH standard

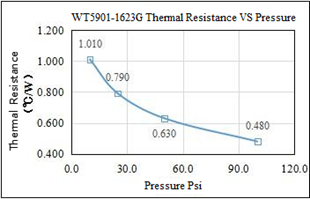

▶ Test data of thermal resistance and its change curve

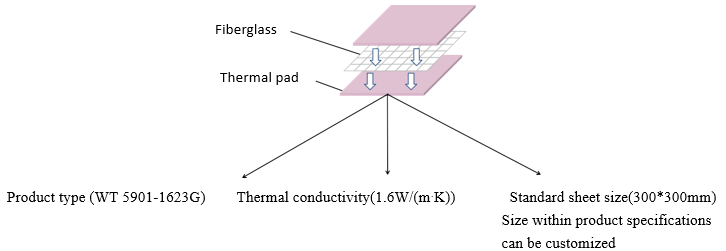

▶ Dimensions

▶ Remarks

For the data sheet, Waermtimo reserves the right to final modification.
